Digital Indicators MM Series

RoHS directive-compliant product

■Characteristics
  • ●When connected with a pressure sensor or immersion-type water level meter, this indicator can display the output value and is capable of comparative output and linear output.
  • ●Waterproof structure in the front part of the panel: IP65
  • ●Built-in sensor power supply
  • ●5-digit display
  • ●Parameter setting on the front panel (scaling function)
  • ●Attachment of a safety terminal cover
  • ●2-point relay contact output
  • ●Linear output 1-5 V or 4-20 mA
  • ●Ratio calculation output possible with 2 sensors connected
■Specifications
  • <1-5V input / output> ●Model:MM-2200
  • <4-20mA input / output> ●Model:MM-3300
  • <Ratio calculation output suppo(1-5V input / output)> ●Model:MM-6600
  • <Ratio calculation output suppo(4-20mA input / output)> ●Model:MM-7700

Digital Indicators MM Series

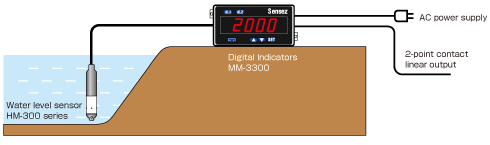

■Usage example

Usage example

※Download the catalog for detailed specifications, dimensions, and models.
