Relay Boxes (for Water Level Sensors)TKB Series

■Characteristics
  • ●This box has a plastic waterproof casing (IP66) and, when connected to an immersion-type water level meter, serves as a relay between the measuring and control devices of the control panel.
  • ●Three types are available: terminal block connection, built-in arrester, and 4-20 mA meter display.
  • ●The casing has a silica gel container built in it for dew condensation prevention.
  • ●The waterproof casing has a vent filter for atmospheric relief, which enables atmospheric relief of the water level meter.
  • ●Cabling can be performed easily using waterproof cable glands.
■Specifications
  • <Terminal block specifications> ●Model:TKB-TS
  • <Arrester specifications(Voltage type)> ●Model:TKB-HR-LV
  • <Arrester specifications(Current type)> ●Model:TKB-HR-24
  • <Indicator specifications> ●Model:TKB-MA

Relay Boxes (for Water Level Sensors)TKB Series

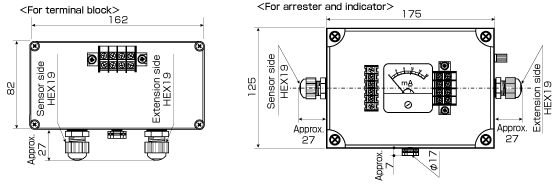

■Dimensions(Units:mm)

Dimensions

※Download the catalog for detailed specifications, dimensions, and models.
