Water Level Control and Monitoring Devices Level Control YJ

Controls the water level for a bath or tank when used with an immersion-type water level meter or water pressure sensor.

■Characteristics
  • ●Comparative output for 4 independent points (mechanical or semiconductor type); it is possible to set an ON/OFF value for each contact point.
  • ●The comparative output value can be set both manually and automatically.
  • ●Easy operation with a backlit LCD
  • ●Display function for − 9.999 m to + 9.999 m
  • ●The output status can be checked on the LED.
  • ●The offset and scaling of the water level can be set arbitrarily in the field.
■Specifications
  • <Controller specifications>
  • ●Model:YJ-CB01
  • ●Sensor input:DC4-20mA
  • ●Power voltage:DC24V ± 10%
  • ●Number of outputs:ON/OFF contact output setting for each of the 4 points
  • ●PhotoMOS type(standard):PhotoMOS output= DC60V, (AC 20V effective value) I = 300mA, PhotoMOS ON resistance = 10 Ω or less
  • ●Mechanical relay type(option):30 VDC 5 A (resistance load), 250 VAC 5 A (resistance load)
■Use examples and track record

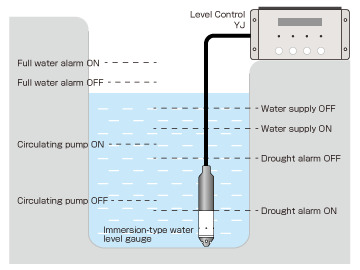

  • ■Water level control of bathtub
  • ■Water level control of tank

Water Level Control and Monitoring Devices Level Control YJ

■Output operation example

Output operation example

※Download the catalog for detailed specifications, dimensions, and models.
