Water Level Observation Systems Level Memory 4CH

Water level observation system using 4-channel data logger capable of long-term observation

■Characteristics
  • ●System consisting of an immersion-type water level meter and a 4-channel data logger. Text data is transferred to a PC via USB memory.
  • ●Atmospheric correction is not required because atmospheric pressure is released via the vent filter of the waterproof casing housing the water level meter cable and logger.
  • ●A desired model can be selected from a range of 2 m to 50 m for highly accuracy measurement.
  • ●The measurement data is displayed in meters with a direct reading method. It is possible to set the display and measurement of the water level from the datum line.
  • ●Exchangeable AA batteries enable long-term measurement.
  • ●The backup function is supported.
■Specifications
  • <Water level meters>
  • ●Measurement range:0 to 2m、0 to 5m、0 to 10m、0 to 20m、0 to 30m、0 to 50m
  • ●Accuracy:±0.2% F.S. or less

  • <Data loggers>
  • ●Model:AQ-5000
  • ●Number of input channels:4
■Use examples and track record
  • ■Long-term water level observation for groundwater
  • ■Water level observation for lakes
  • ■Water level change measurement for water channels

Water Level Observation Systems Level Memory 4CH

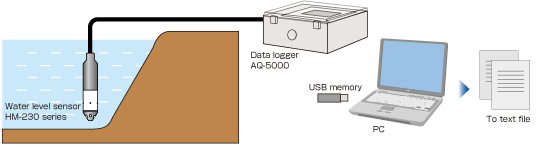

■System example

System example

※Download the catalog for detailed specifications, dimensions, and models.
